FPV OSD

For all my Betaflight drones, I use a three-profile OSD, toggled with the lower-left 3-way toggle switch. Demonstrated below is from CHEVETTE; normally the HDZero Goggles 2 OSD is hidden, but I guess I forgot.

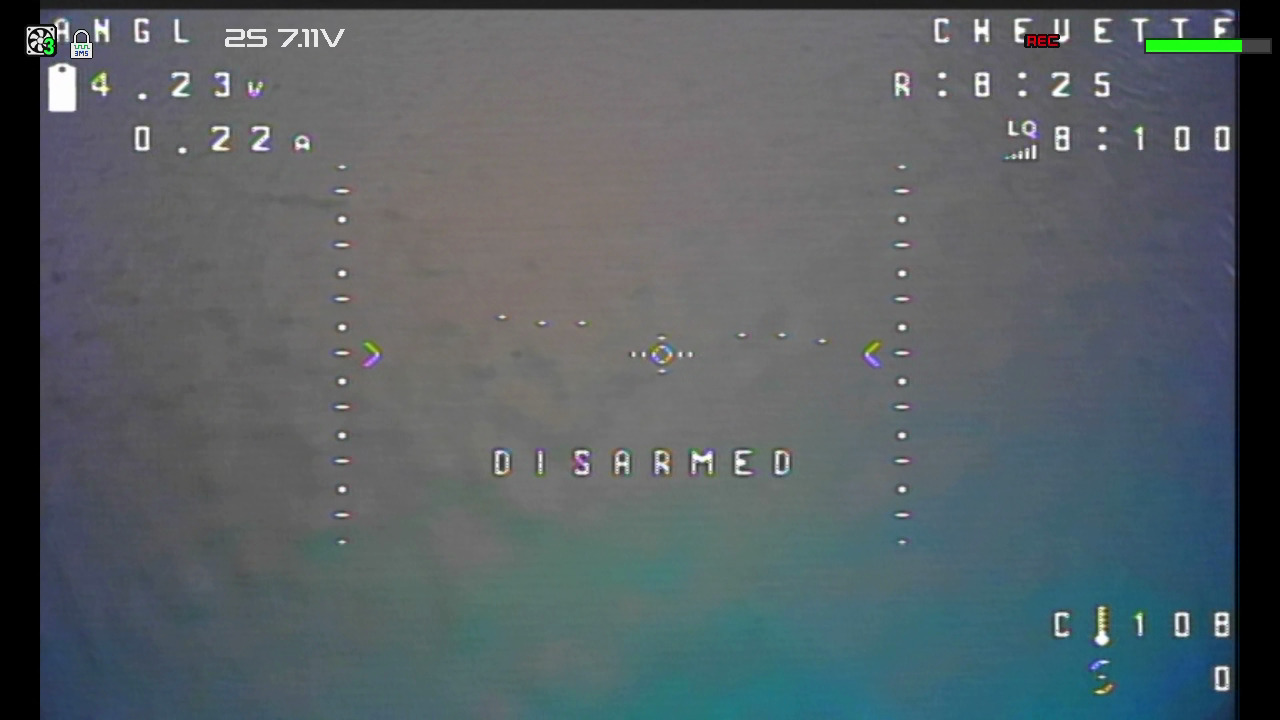

The first is the full display; for drones with large enough video, this includes the stick display.

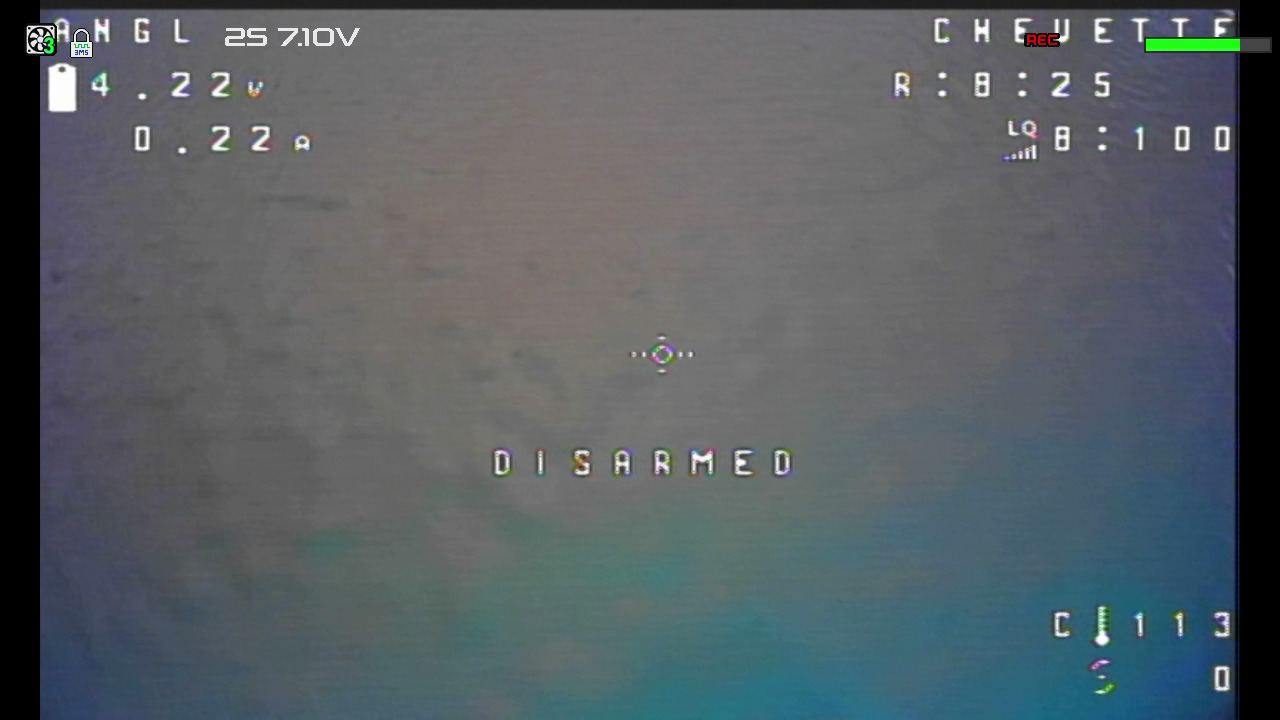

The second omits the artificial horizon and stick displays.

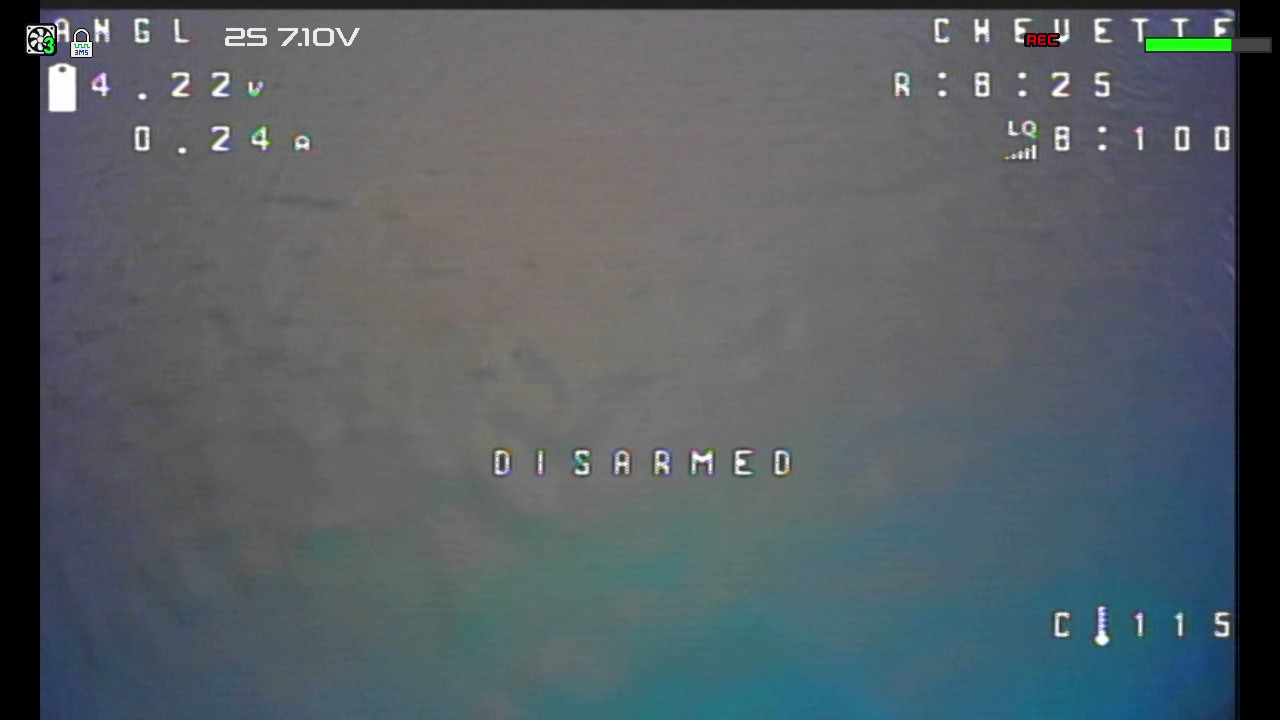

Third has no flight attitude or throttle indicators, only aircraft health.

I keep the DISARMED alert just below the crosshair, and the warnings above that. On the upper left are flight-related data - flight mode, current battery life, and current draw. On the upper right is the aircraft name, VTX channel and power, and the link quality. On the bottom right is the VTX temperature (where supported), core temperature and current throttle position. The throttle is mostly useful for diagnosing flights on DVR.
